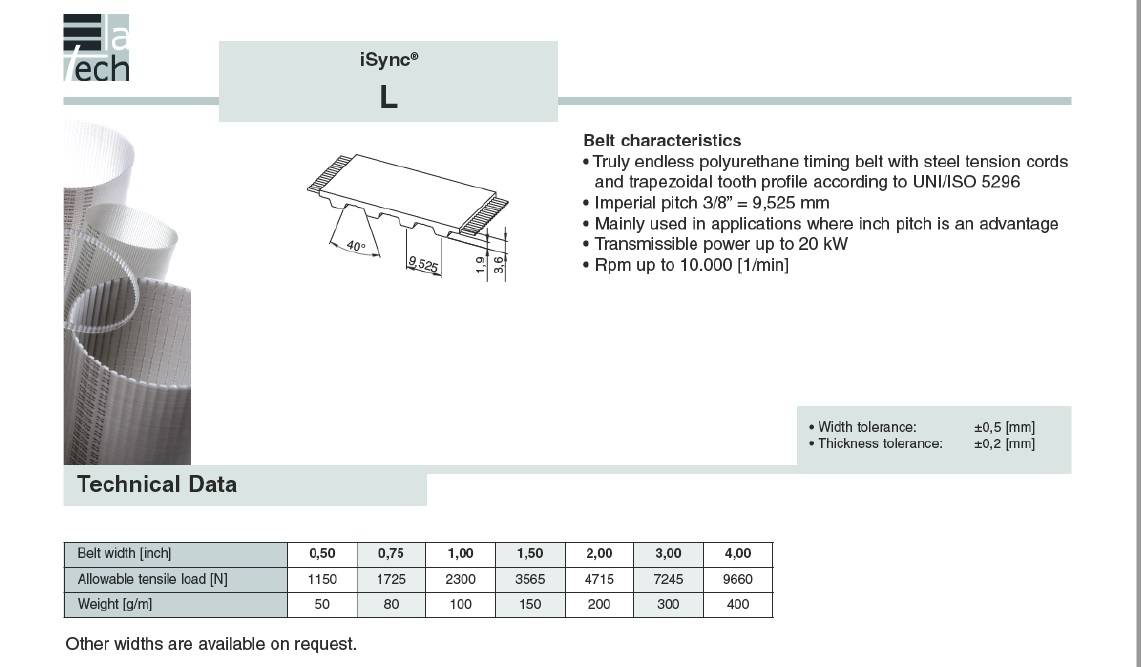

Properties:
– Truly endless polyurethane timing belt with high steel tension cords and trapezoidal tooth profile according to UNI/ISO 296
– Metric pitch 9.525mm = Imperial pitch 3/8″
-Mainly used in applications where inch pitch is an advantage
-Transmissible power up to 20 kw
-RPM up to 10,000 (1/min)
| Length | L-22.5mm., L-24mm., L-25.5mm., L-27mm., L-28.5mm., L-30mm., L-51mm., L-54mm. |
|---|---|
| Width | W 0006mm., W 0008mm., W 0010mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm., W 0075mm., W 0100mm. |
