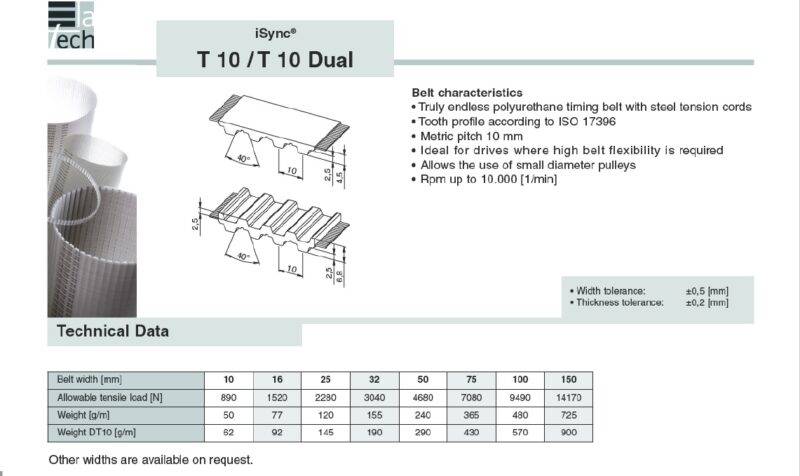

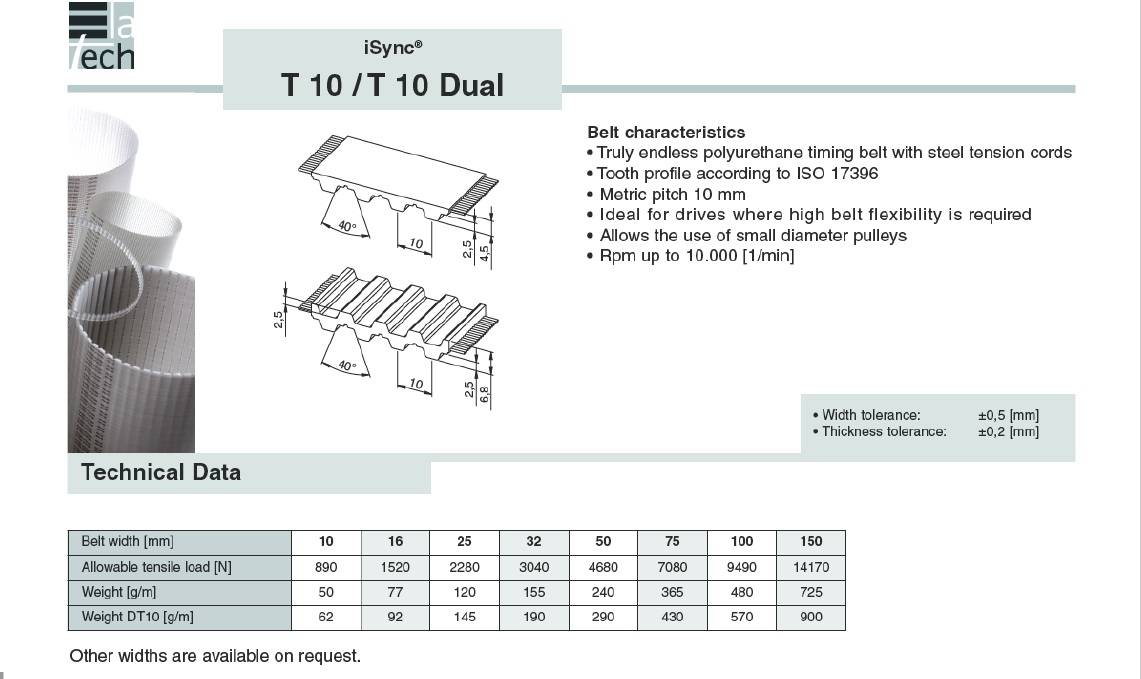

Properties:
– Truly endless polyurethane timing belt with steel tension cords
– Tooth profile according to ISO 17396
– Metric pitch 10mm
– Ideal for drives where high belt flexibility is required
– Allows the use of small diameter pulleys
– RPM up to 10,0000 (1/min)
| Length | T10-260mm., T10-320mm., T10-350mm., T10-370mm., T10-400mm., T10-410mm., T10-440mm., T10-450mm., T10-480mm., T10-500mm., T10-530mm., T10-550mm., T10-560mm., T10-600mm., T10-610mm., T10-630mm., T10-650mm., T10-660mm., T10-690mm. |
|---|---|
| Width | W 0006mm., W 0008mm., W 0010mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm., W 0075mm., W 0100mm. |
