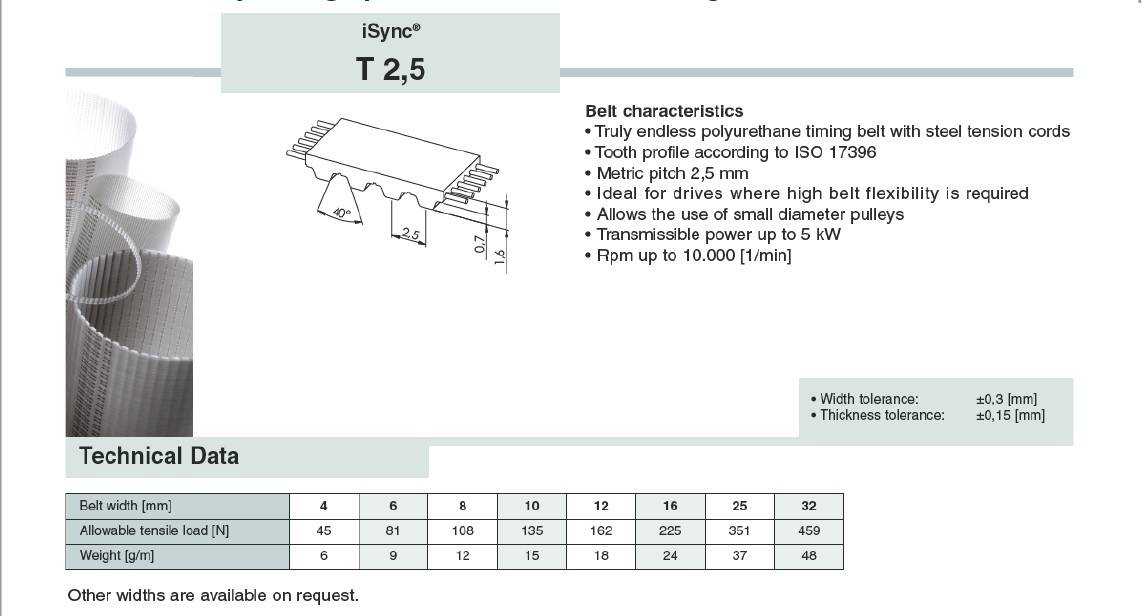

Properties:
– Truly endless polyurethane timing belt with steel tension cords
– Tooth profile according to ISO 17396
– Metric pitch 2.5mm
– Ideal for drives where high belt flexibility is required
– Allows the use of small diameter pulleys
– Transmissible power upto 5 kw
– RPM up to 10,0000 (1/min)
| Length | T2.5-120mm., T2.5-145mm., T2.5-160mm., T2.5-177.5mm., T2.5-180mm., T2.5-200mm., T2.5-210mm., T2.5-230mm., T2.5-245mm., T2.5-265mm., T2.5-277.5mm., T2.5-285mm., T2.5-290mm., T2.5-305mm., T2.5-317.5mm., T2.5-330mm., T2.5-342.5mm., T2.5-380mm., T2.5-420mm., T2.5-480mm. |
|---|---|
| Width | W 0006mm., W 0008mm., W 0010mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm., W 0075mm., W 0100mm. |
