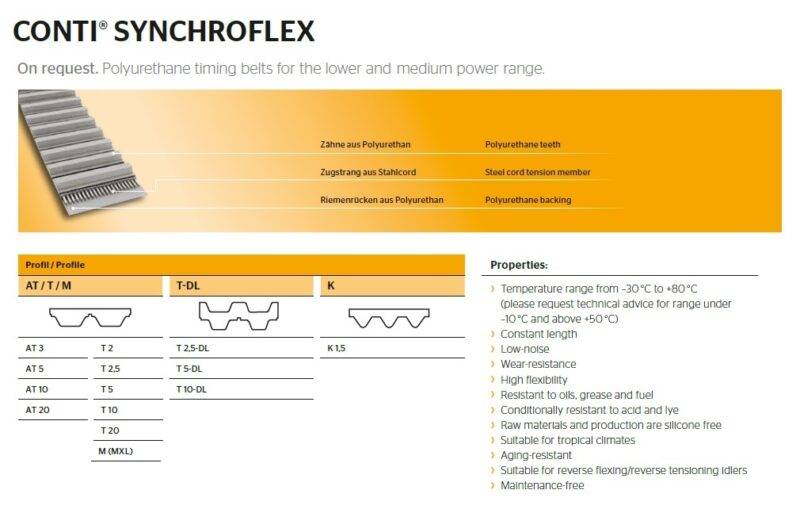

-Temperature range from –30 °C to + 8 0 ° C
(please request technical advice for range under –10 °C and above +50 °C )
-Resistant to oils, grease and fuel
-Conditionally resistant to acid and lye
-Raw materials and production are silicone free Suitable for tropical climates
-Suitable for reverse flexing/reverse tensioning idlers Maintenance-free
Timing Belt Endless T5 (Length 100 – 280 mm.)
The T profile is a trapezoidal standard profile in a metric pitch for conventional timing belt appli- cations. The tooth geometry allows a play-free belt/sprocket pairing that results in unsurpassed precision. The profile is also available in a double- sided version (T-DL).
T5-100-F, T5-150-F, T5-165-F, T5-180-F, T5-185-F, T5-200-F, T5-210-F, T5-215-F, T5-220-F, T5-225-F, T5-245-F, T5-250-F, T5-255-F, T5-260-F, T5-270-F, T5-280-F
W 0006mm., W 0008mm., W 0010mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm.
