-Temperature range, depending on application,from –20 °C to +100 °C
-Conditionally resistant to oil
-Suitable for tropical climates
-Suitable for reverse flexing / reverse tensioning idlers

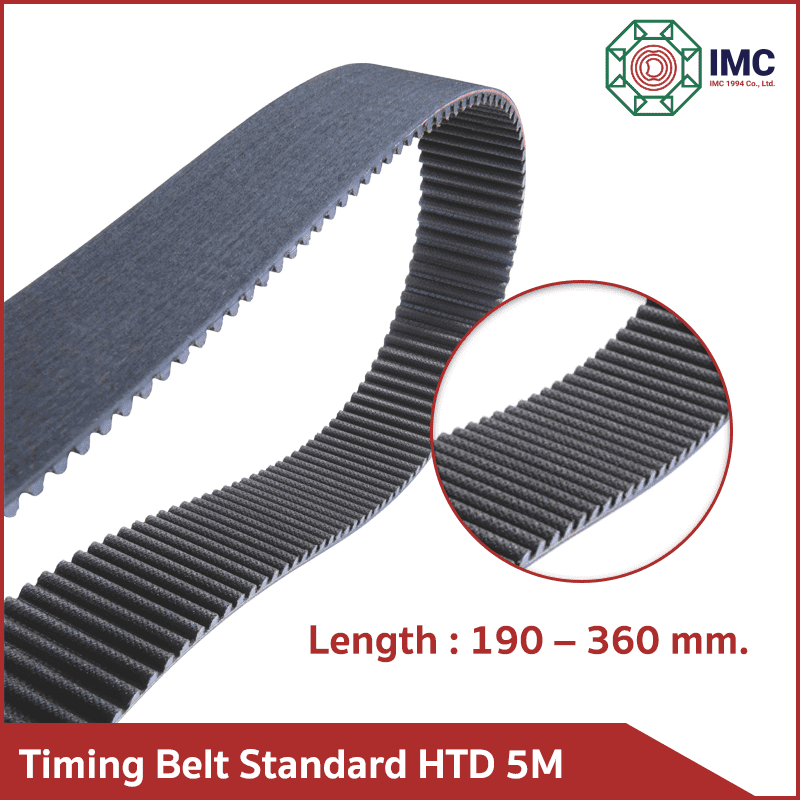

Timing Belt Standard HTD 5M (Length 190 – 360mm.)
Because of its tooth height and semi-circular tooth geometry, the HTD profile is especially good at avoiding jump-over of the teeth in operation. The HTD profile is extremely suitable for transmitting high torques. The profile is also available in a double-sided version (DHTD).
HTD 190-5M, HTD 200-5M, HTD 210-5M, HTD 225-5M, HTD 245-5M, HTD 255-5M, HTD 265-5M, HTD 270-5M, HTD 275-5M, HTD 280-5M, HTD 295-5M, HTD 300-5M, HTD 305-5M, HTD 320-5M, HTD 325-5M, HTD 330-5M, HTD 340-5M, HTD 345-5M, HTD 350-5M, HTD 360-5M
W 0009mm., W 0015mm., W 0020mm., W 0025mm., W 0030mm., W 0040mm.
