-Temperature range, depending on application,from –20 °C to +100 °C
-Conditionally resistant to oil
-Suitable for tropical climates
-Suitable for reverse flexing /
reverse tensioning idlers

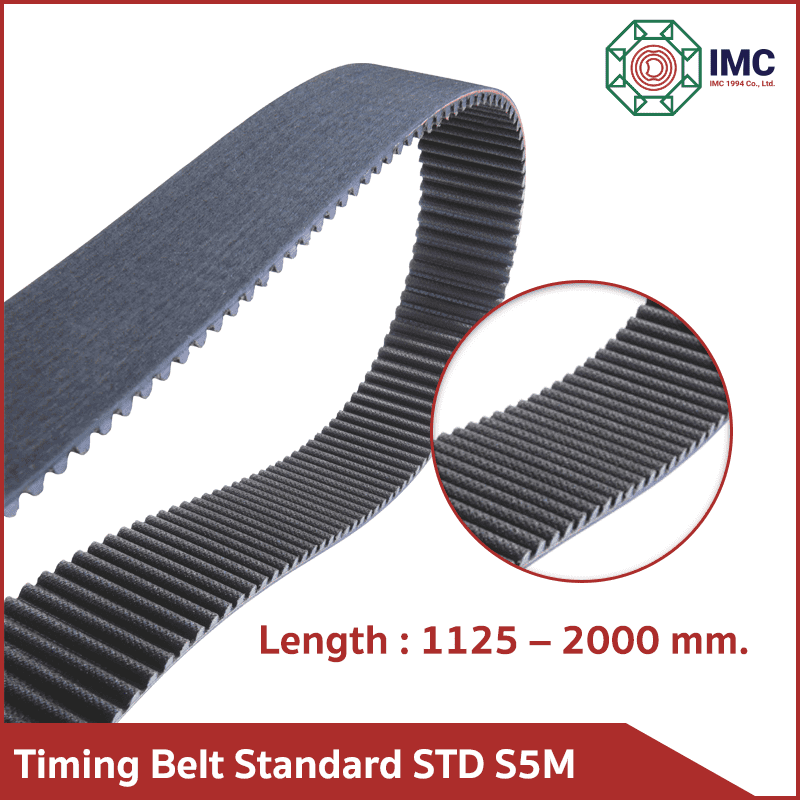

Timing Belt Standard STD S5M (Length 1125 – 2000mm.)
Thanks to its involute-shaped geometry, the STD profile achieves optimal meshing of the teeth in the sprocket. As a result, the STD profile also ensures very precise, low-noise operation even at high belt speeds. The profile is also available
in a double-sided version (DSTD).
STD1125-S5M, STD1195-S5M, STD1210-S5M, STD1390-S5M, STD1490-S5M, STD1500-S5M, STD1595-S5M, STD1700-S5M, STD1800-S5M, STD1880-S5M, STD2000-S5M
W 0015mm., W 0020mm., W 0025mm., W 0030mm., W 0040mm.
