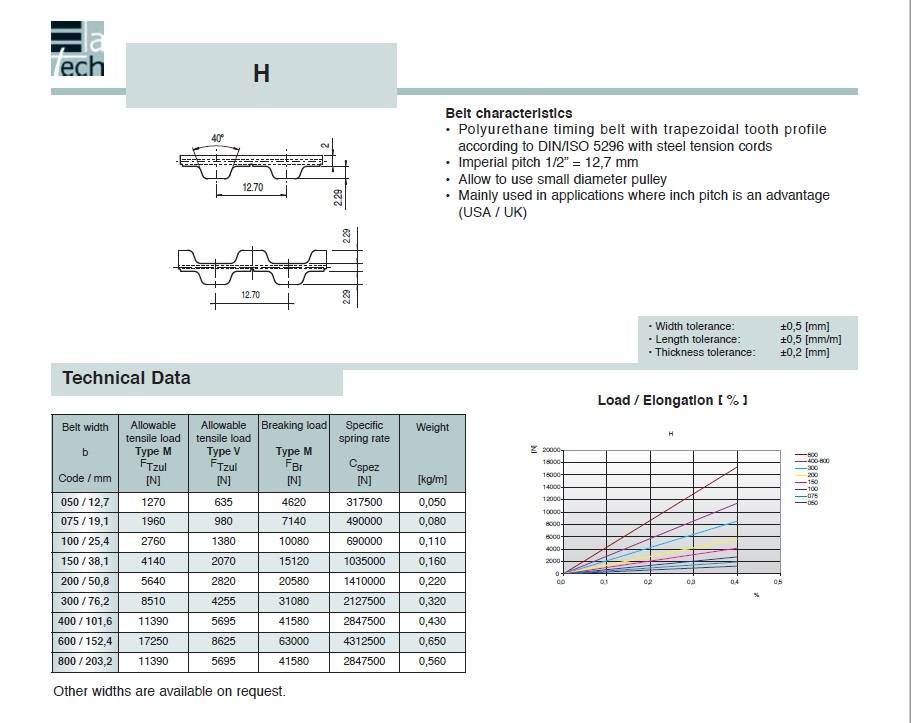

Properties:
• Truly endless polyurethane timing belt with high steel tension cords
• Tooth profile according to UNI/ISO 5296
• Imperial pitch 1/2” = 12,7 mm
• Allow to use small diameter pulley
• Mainly used in applications where inch pitch is an advantage
• Transmissible power up to 30 kW
• Rpm up to 10.000 [1/min]
• Dual toothing available from 1500 mm
| Length | TK10-K13 |
|---|---|
| Width | W 0004mm., W 0006mm., W 0008mm., W 0010mm., W 012.5mm., W 0012mm., W 0016mm., W 0020mm., W 0025mm., W 0032mm., W 0050mm., W 0050mm., W 0075mm., W 0075mm., W 052.5mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 0075mm., W 025In/6.35mm., W 037In/9.525mm., W 050In/12.7mm., W 075In/19.05mm., W 100In/25.4mm., W 150In/38.1mm., W 200In/50.8mm., W 300In/76.2mm., W 400In/101.6mm., 600In/152.4mm., W 800In/203.2mm. |
| Type | OPEN, JOINT |
